节点宕机数据丢失后部分分片无法分配 can not allocate

Elasticsearch | 作者 coding_hl | 发布于2022年06月08日 | 阅读数:2165

集群:1主2数共3个节点
索引配置: 1个分片1个副本,主副本随机分配在2个数据节点上
场景:数据节点1因为硬盘原因直接挂了,服务器宕机,该节点下线.为了保证业务正常运行,集群的录入仍然在进行中,
       节点下线后硬盘无法恢复,数据全部丢失.我们在该服务器上重新部署了一个es实例,采用原来的配置,启动后该节点加入到集群中,大         部分索引都恢复正常,但是部分索引的分片一直处于unassigned状态.

unassigned.reason:CLUSTER_RECOVERED
allocate_explanation: cannot allocate because a previous copy of the primary shard existed but can no longer be found on                                    the nodes in the cluster
GET _cluster/allocation/explain
{
    "index": "xxxxx",
    "shard": 0,
    "primary": true,
    "current_state": "unassigned",
    "unassigned_info": {
        "reason": "CLUSTER_RECOVERED",
        "at": "2022-06-01T08:03:26.148Z",
        "last_allocation_status": "no_valid_shard_copy"
    },
    "can_allocate": "no_valid_shard_copy",
    "allocate_explanation": "cannot allocate because a previous copy of the primary shard existed but can no longer be found on the nodes in the cluster",
    "node_allocation_decisions": [
        {
            "node_id": "99djMuR7QvSsFldV-HnpIQ",
            "node_name": "node-2",
            "transport_address": "10.0.0.208:9300",
            "node_attributes": {
                "ml.machine_memory": "67293700096",
                "ml.max_open_jobs": "20",
                "xpack.installed": "true",
                "ml.enabled": "true"
            },
            "node_decision": "no",
            "store": {
                "found": false
            }
        },
        {
            "node_id": "HyR6JVkjRwmGcfqYtkFd0Q",
            "node_name": "node-3",
            "transport_address": "10.0.0.209:9300",
            "node_attributes": {
                "ml.machine_memory": "67295186944",
                "ml.max_open_jobs": "20",
                "xpack.installed": "true",
                "ml.enabled": "true"
            },
            "node_decision": "no",
            "store": {
                "found": false
            }
        }
    ]
}
由于只有1个分片,所以该分片无法分配后,导致集群中目前已经无法查询到该索引
GET _cat/recovery/XXX 信息如下:
 bytes_total translog_ops translog_ops_recovered translog_ops_percent

尝试进行手动分配仍然不起作用的
POST /_cluster/reroute
{
  "commands": [
    {
      "allocate_stale_primary": {
        "index": "xxxxx",
        "shard": 0,
        "node": "node-2",
        "accept_data_loss": true
      }
    }
  ]
}

问题:
      该节点下线后,另外一个节点上的副本分片都会被提升为主分片,然后正常进行操作,等到该节点重新加入集群后(数据已经丢失),集群会重新对数据进行操作,使得集群恢复green,那么为什么这些主分片不行呢?网上说是数据损坏了,但是这个节点一直正常工作,为什么会出现损坏呢?
   目前集群没有做快照,有什么方法可以恢复这些数据呢?网络上都是分配一个空的主分片,这会导致该分片数据的丢失.













已邀请:

coding_hl

赞同来自:

es版本是6.6.2

Charele - Cisco4321

赞同来自:

你说的“另外一个节点上的副本分片都会被提升为主分片,,,”这些,理论上应该是的。
不过理论归理论,实际会是啥,谁也不晓得。

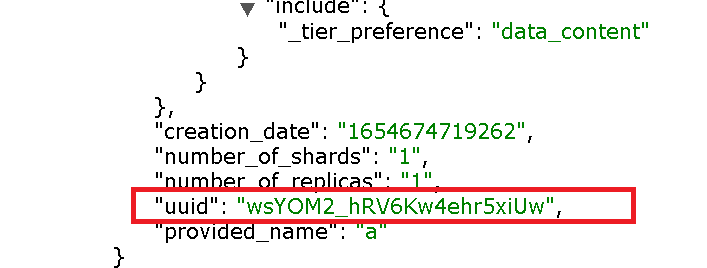

你可以先用GET xxxxx看下这个索引的uuid,

然后到ES的数据目录里面,看看是不是有这个索引存在,
如果没有,或者说此索引的数据量很大,但索引目录只有几k,几M这种的,说明真的没有了。
如果有,且大小差不多,可能还有别的办法。



coding_hl

赞同来自:

查看了数据的文件目录确实已经没有数据了,所以奇怪的是,数据节点1下线后,数据节点2上仍然拥有该索引的一个副本,集群应该将该副本分片提升为主分片,事实上,在数据节点1上并没有任何关于该索引的分片信息,奇了怪了?


coding_hl

赞同来自:

由于是3个节点的集群,当时数据节点1下线的时候是主节点,所以该服务器挂了以后,因为设置的discovery.zen.minimum_master_nodes为3集群无法选举,所以手动修改了值为1,然后重启了另外两个节点,不知道是不是这个原因导致的.....

coding_hl

赞同来自:

a节点: node.master: true     node.data: false
b节点: node.master: true     node.data: true
c节点: node.master: true     node.data: true

此时c节点是主节点,c节点因为硬盘挂了,宕机了。 集群没有主节点了,且无法进行选举(discovery.zen.minimum_master_nodes=3),所以我把a和b的配置discovery.zen.minimum_master_nodes改成1,重启了a和b,让集群正常工作。
后来c节点上的硬盘数据恢复失败,数据直接没了,所以在c上重新部署了es实例,用了c上的原来的配置,但是数据没了。c启动后,正常加入了集群。
索引的设置是一个分片一个副本,这个分片和副本基本上就是b上一个分片,c上一个分片。
c加入集群前,此时大部分的索引均是yellow状态。
c加入集群后,集群自动将b上的一个分片移动到c上,此时索引状态变为green了。

而那些不能够恢复的索引,数据目录已经没有了。按理来说,c下线的时候,有一个分片在b上,那么此时这个分片会被提升为主分片,然后正常进行读写,可是为什么在b上的部分分片数据没了?
